Modular Stack Valves
Industrial-Grade Hydraulic Modular Valves Completely Guide: Key Technologies for System Miniaturization and Leak-Proof Design
In modern industrial hydraulic system design, Modular Valves (Stack Valves) have become core components for enhancing equipment stability and simplifying structures. For engineers and manufacturers seeking to save installation space, reduce complex piping, and solve oil leakage pain points, high-quality modular valves are the optimal solution for optimizing hydraulic circuits.
The high-precision modular valve series produced by YUTIEN is widely applied in machine tools, plastic machinery, die-casting machines, and various automation equipment, providing efficient and stable fluid power support for global OEM manufacturers.
What Are Hydraulic Modular Valves? Why Are They the Preferred Choice for Modern Systems?
A modular valve is a block-style hydraulic control component designed to have multiple functional valves (such as pressure control, flow control, or directional control) stacked directly onto a subplate or between directional valves.
Core Advantages of Modular Valves:
-
Ultimate Space Saving: By stacking valves, traditional pipe connections are eliminated, significantly reducing the overall size of the hydraulic power unit, making it particularly suitable for machinery with limited installation space.
-
Eliminating Leakage Risks: Minimizing a large number of pipe joints and fittings fundamentally resolves the oil seepage issues that systems easily encounter under high-pressure operation.
-
Simplified Maintenance and Assembly: Adopting standardized ISO 4401 (CETOP) mounting dimensions, assembly requires only long tie-rods, making disassembly and maintenance exceptionally convenient and substantially shortening downtime.
-
Cost Reduction: Due to the reduction in piping materials and labor costs, modular circuits are more cost-effective than traditional piped systems.
Common Types of Hydraulic Modular Valves and Their Application Scenarios
To satisfy different control requirements, YUTIEN provides a comprehensive range of specifications, with main categories including:
-
Modular Relief Valves: Used to limit the maximum system pressure, protecting pumps and actuators from overpressure damage.
-

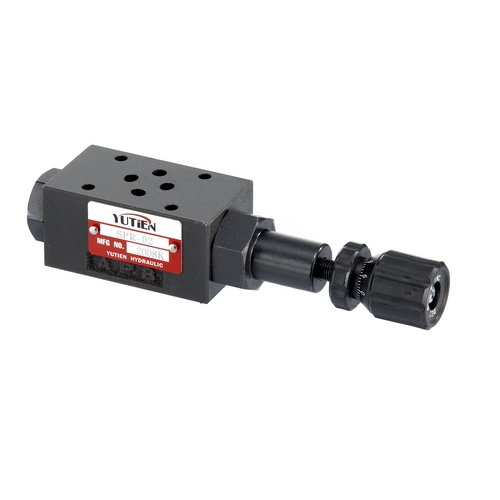

Modular Reducing Valves: Provides a stable reduced pressure output when a specific part of the system requires a lower operating pressure.
-

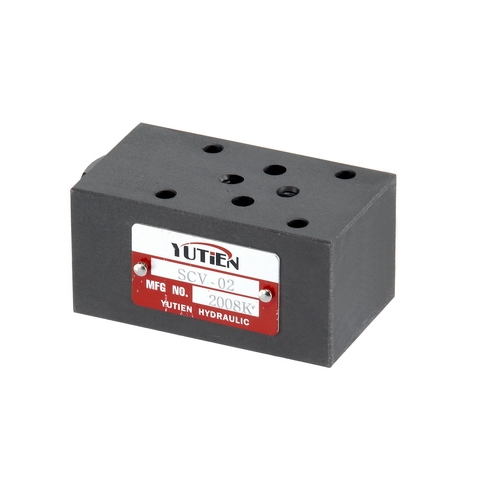

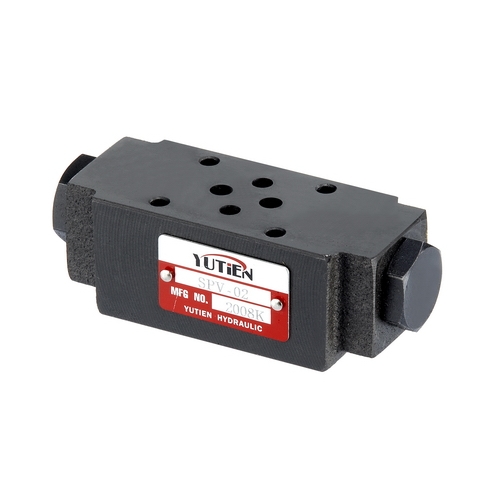

Modular Check / Pilot-Operated Check Valves: Prevents oil backflow or maintains load pressure, ensuring that hydraulic cylinders do not drift when stopped.
-
Modular Flow Control Valves: Precisely regulates the movement speed of hydraulic cylinders, supporting single-direction or bi-directional flow adjustment.
-
Modular Counterbalance Valves: In vertical motion systems with gravitational loads, provides backpressure to prevent loads from sliding down out of control.
Expert Answers: How to Optimize Your Hydraulic Modular System?
Q: How do I select the suitable modular valve specification? A: First, you need to confirm the system flow rate (L/min) and pressure (bar/kgf/cm²). Currently, the major international mainstream standards are NG6 (CETOP 03) and NG10 (CETOP 05). Products from YUTIEN fully comply with these international standards and feature extreme brand interchangeability, allowing them to perfectly match directional valves from major global brands.
Q: What requires the most attention when installing modular valves? A: The quality and alignment of the sealing rings (O-rings) are critical. Every modular valve shipped from YUTIEN is equipped with high-quality, oil-resistant sealing rings and undergoes 100% rigorous pressure testing to ensure zero leakage even under high-pressure pulse environments.
Q: Why do YUTIEN's modular valves perform more stably over long-term operation? A: The key lies in materials and heat treatment. YUTIEN utilizes high-strength castings and precision-ground spools, which not only enhances the wear resistance of the valves but also significantly reduces internal leakage, ensuring long-term actuation precision of the system.
YUTIEN Hydraulic Modular Valves: A Trusted Industry Standard
As a leading brand in the fluid power field, YUTIEN is dedicated to developing more precise and durable modular valve components. Our product features include:
-
High Pressure Tolerance: The standard series can operate stably in environments ranging from 210 to 315 kgf/cm².
-
Diverse Specifications: Offers a complete product line from single-function to multi-function combinations to satisfy various complex circuit designs.
-
Quality Certification: Strictly follows the ISO international quality control system, with traceability records available for every valve.
